Using set-content

This lesson demonstrates the usage of the set-content property and named strings.

Example taken from https://raw.githack.com/vivliostyle/vivliostyle.js/master/packages/core/test/files/named-strings/string-set-content.html

Repository files

PDF files

Converter Status PDF Preview

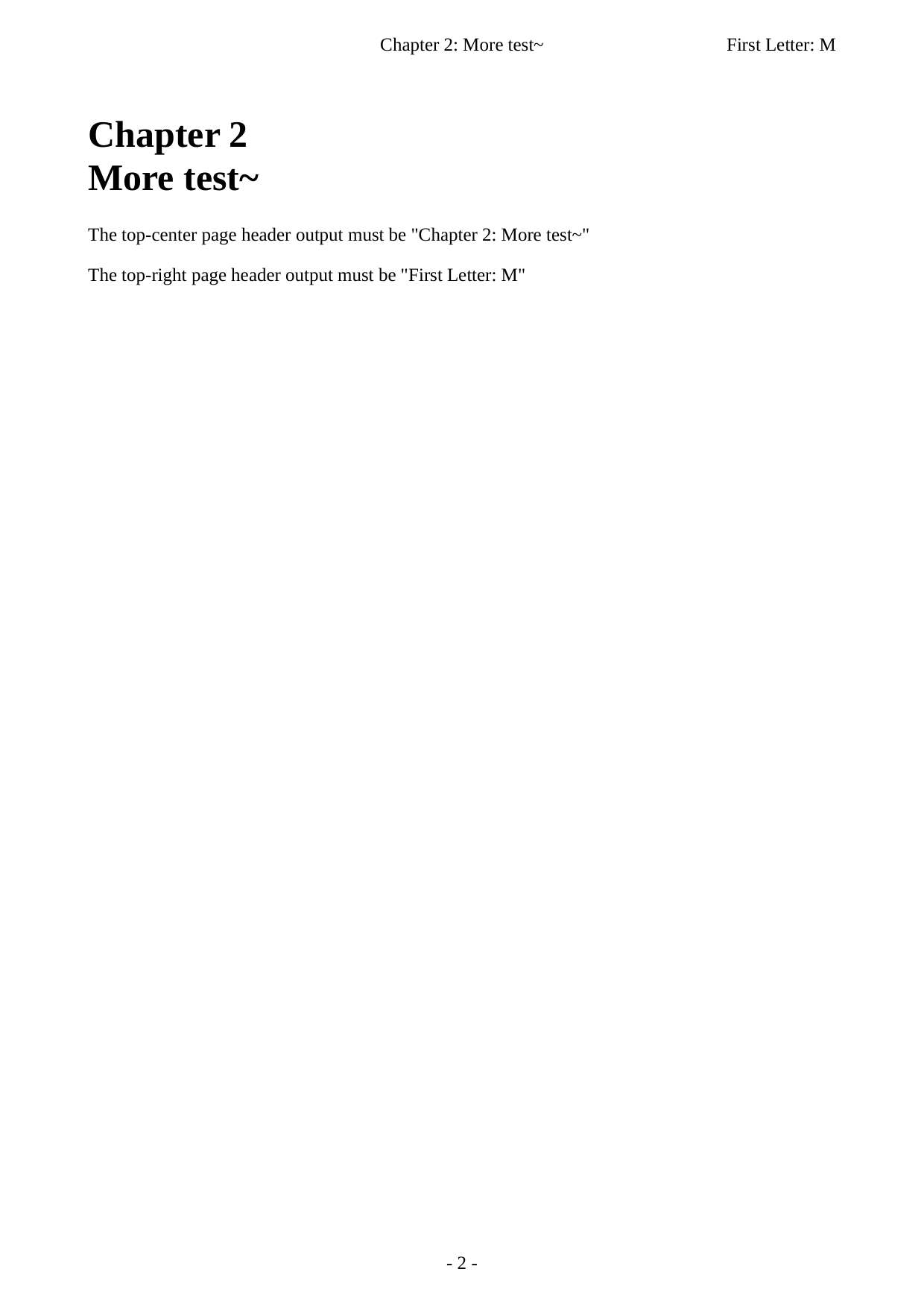

PDFreactor  OK

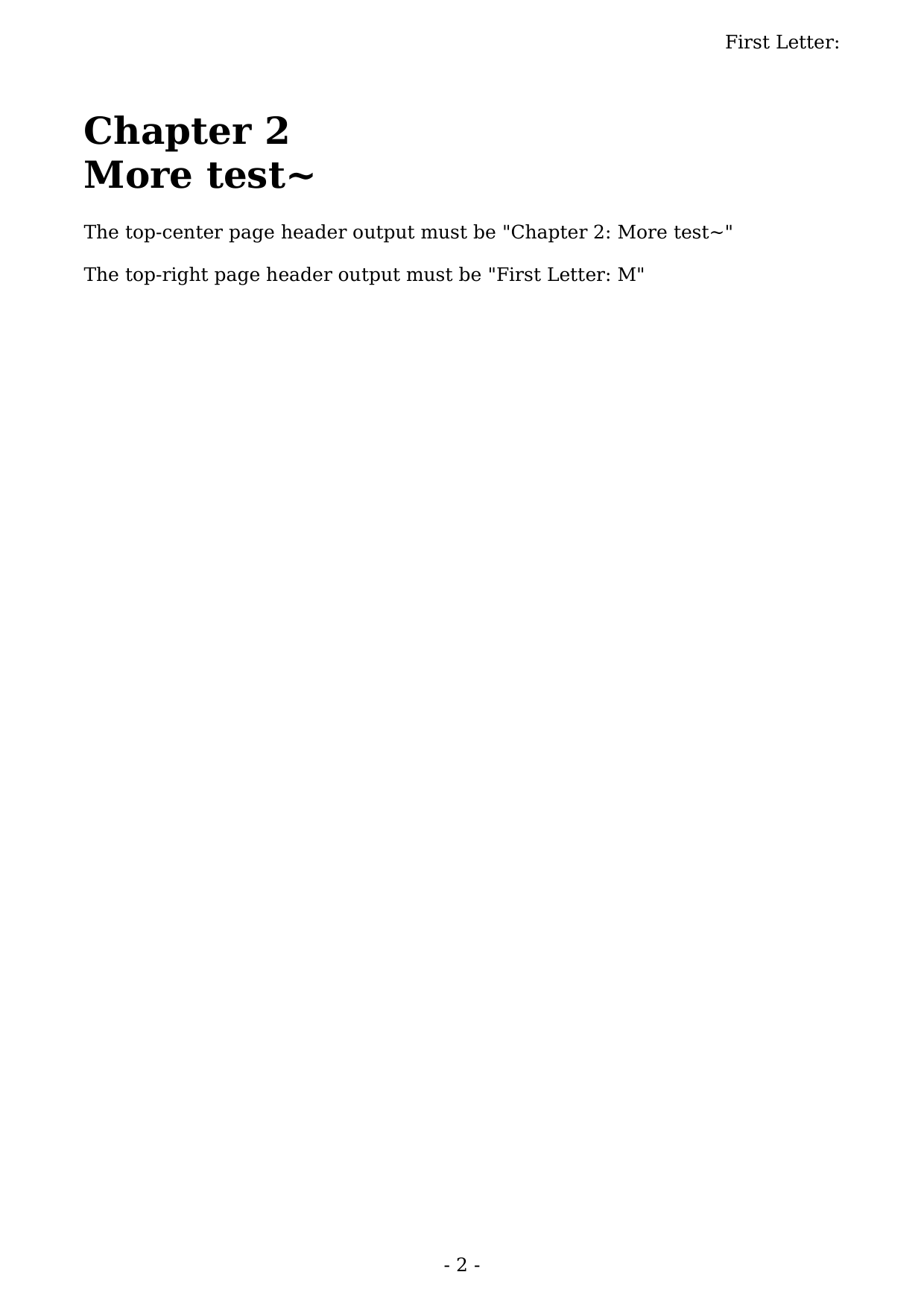

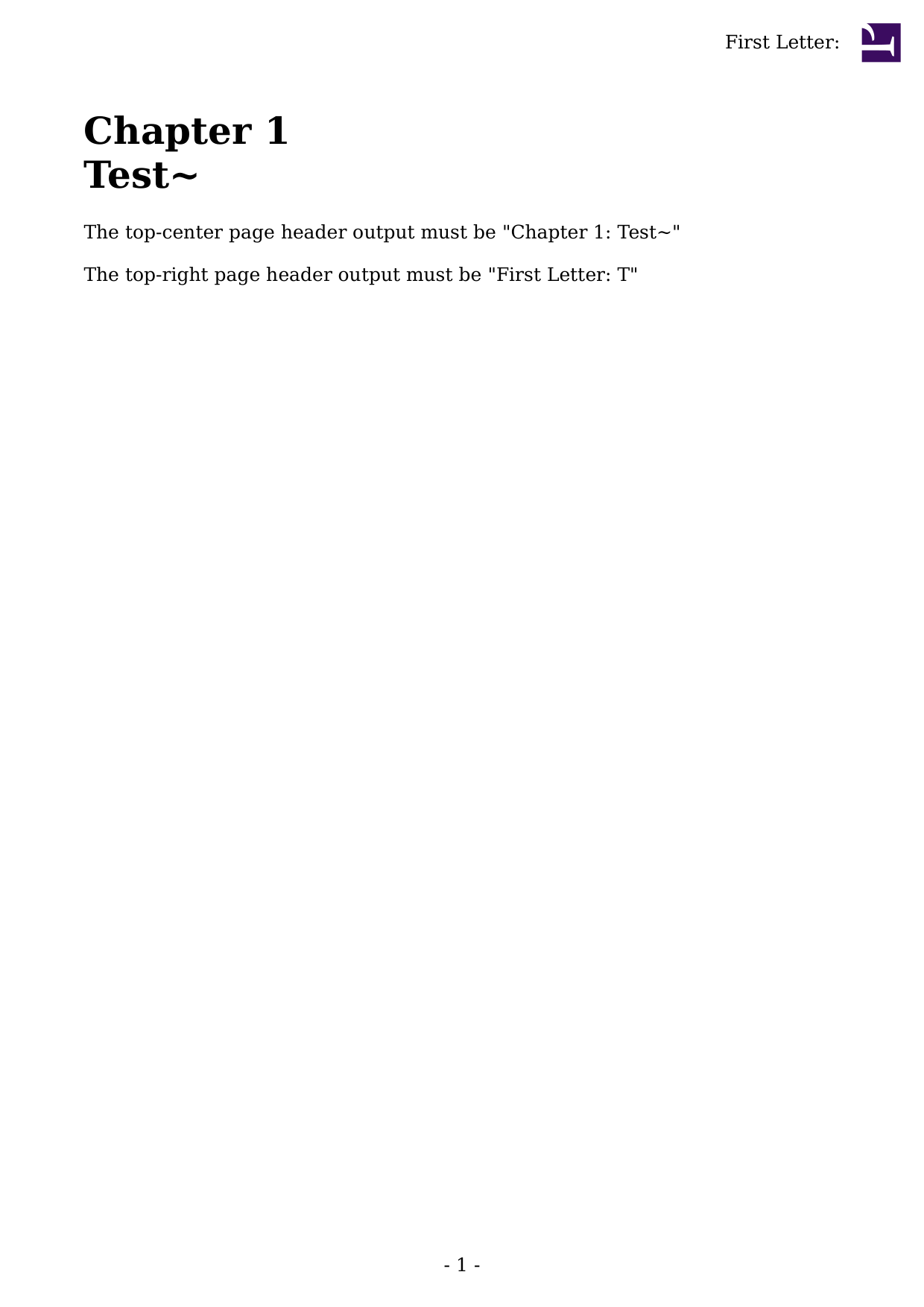

PrinceXML  ERROR

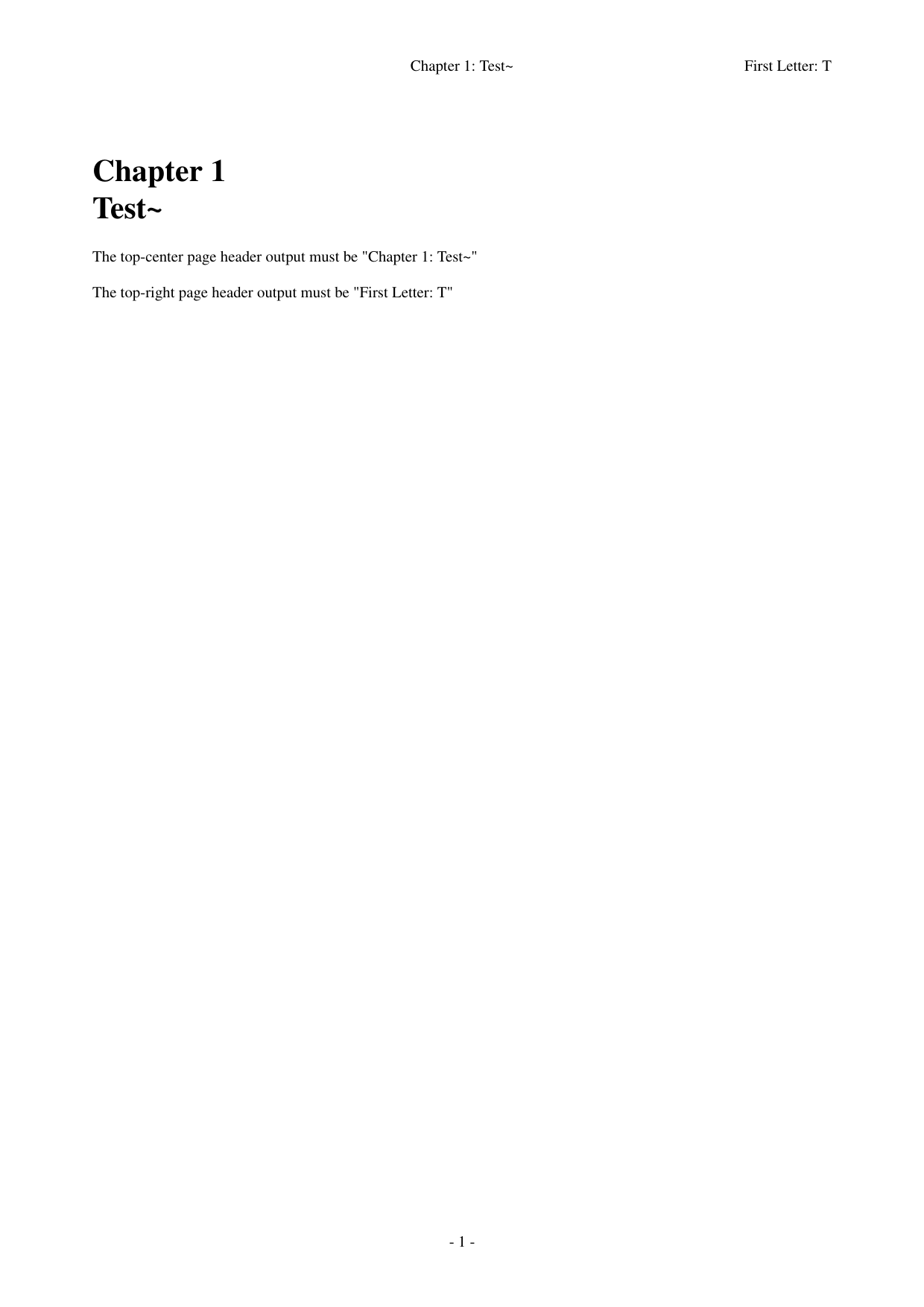

Antennahouse  OK

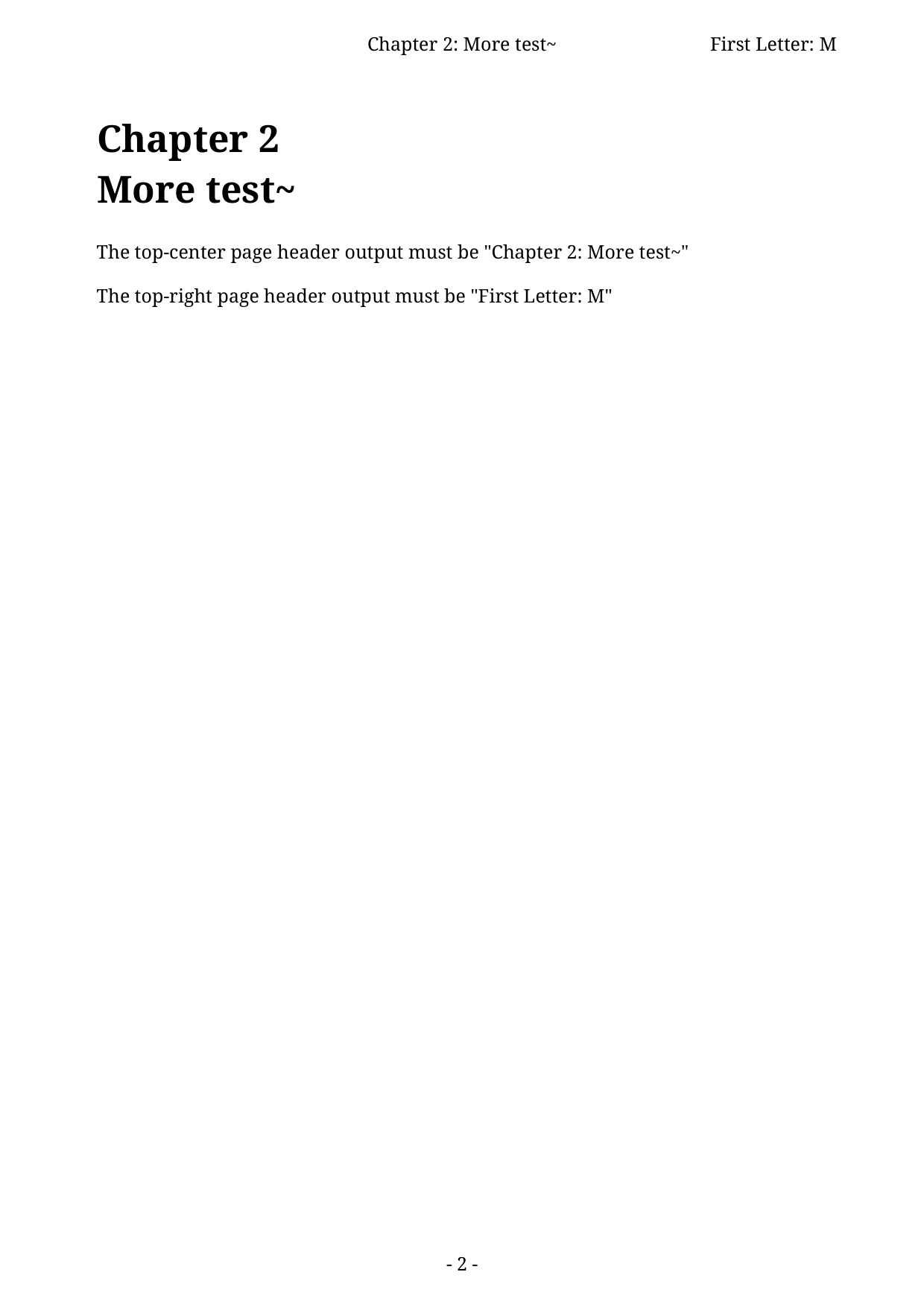

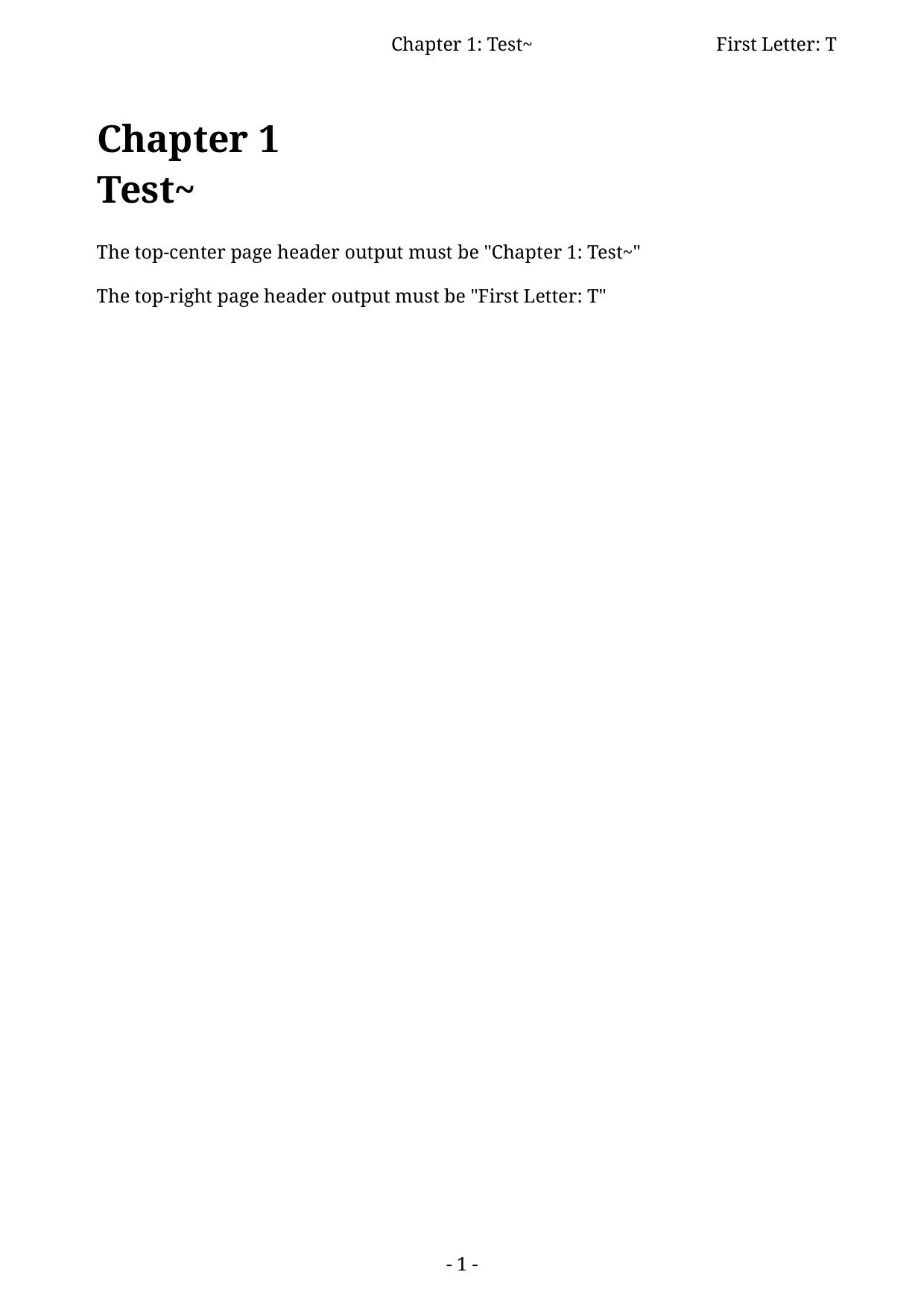

Weasyprint  OK

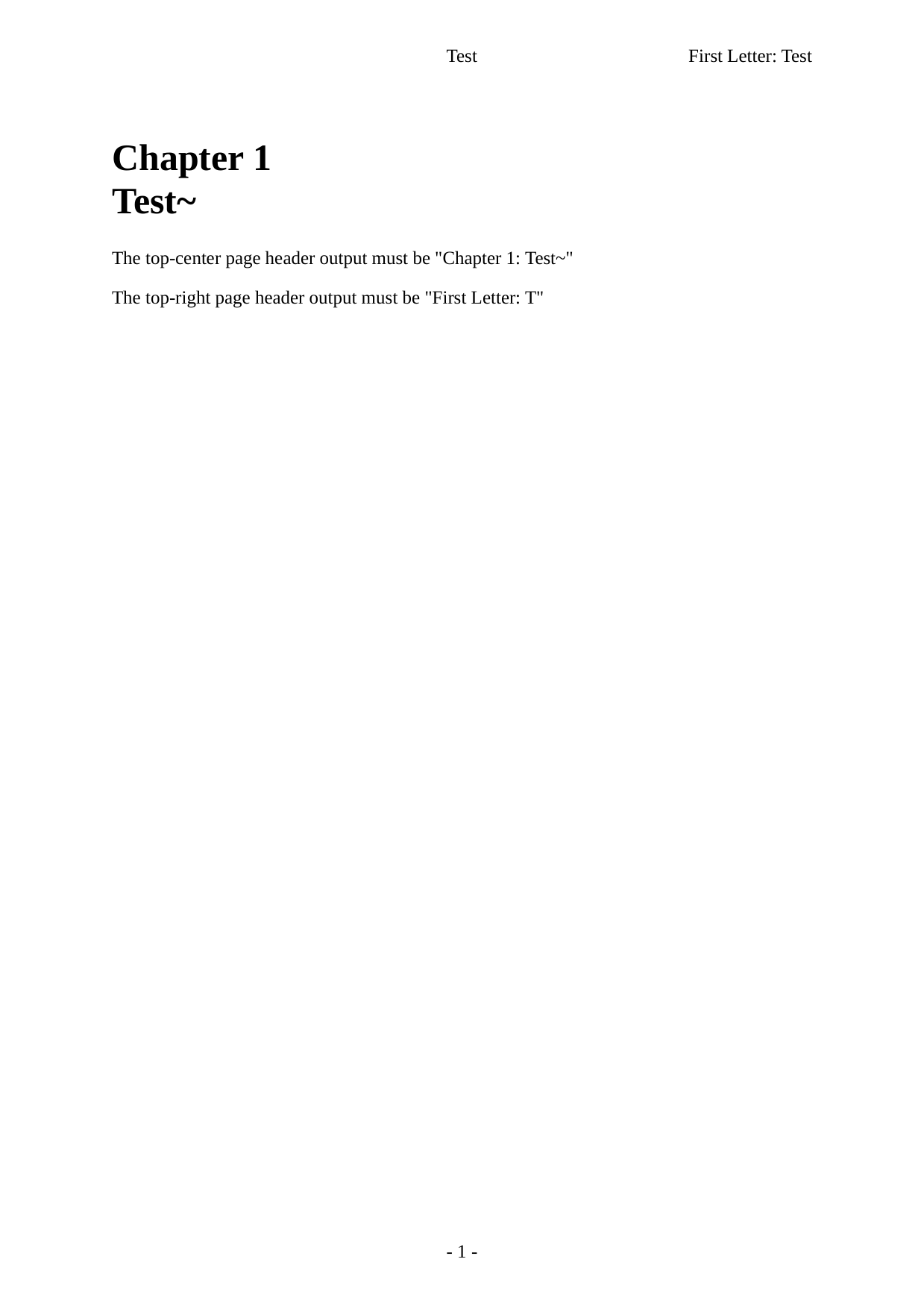

PagedJS  ERROR

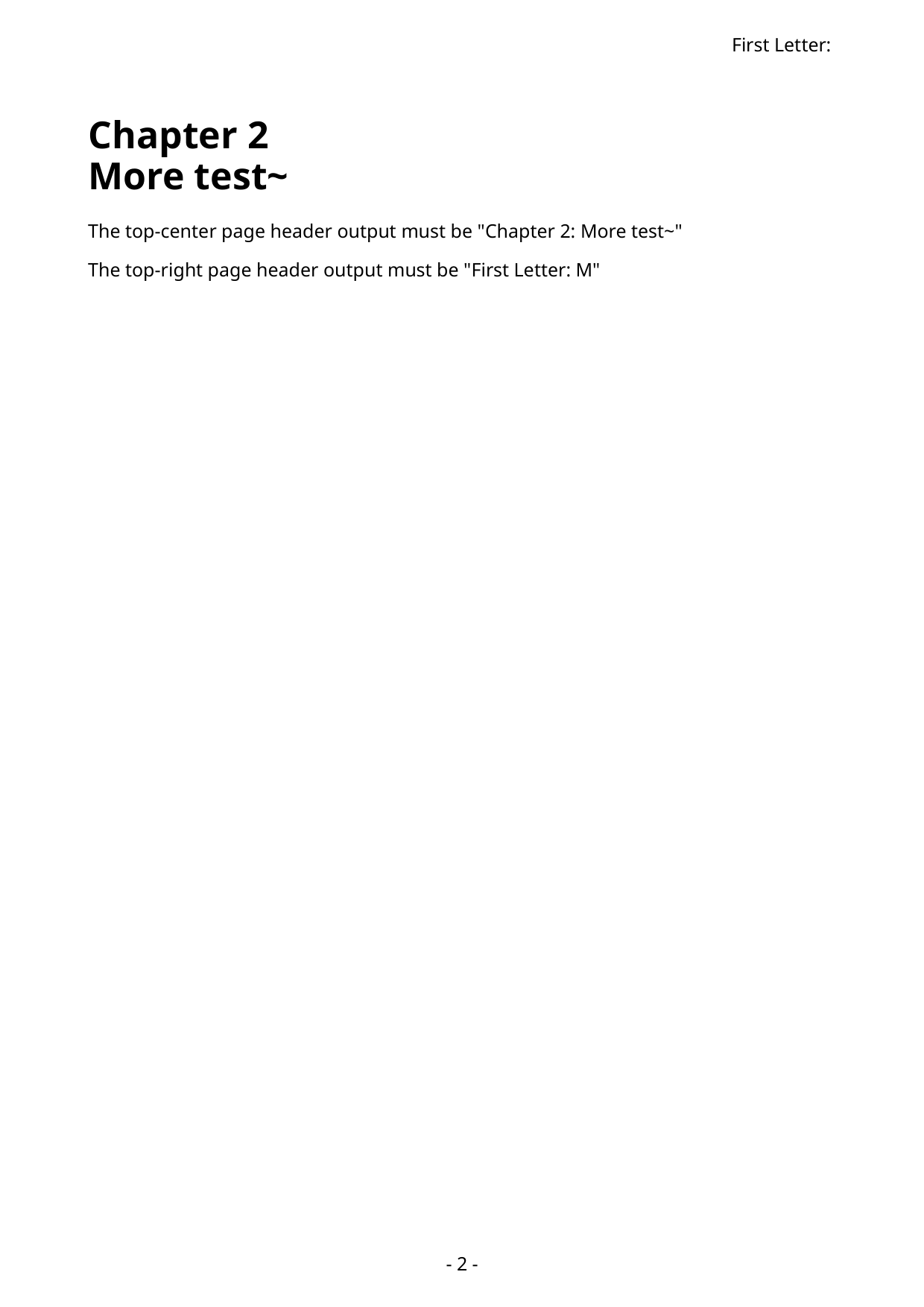

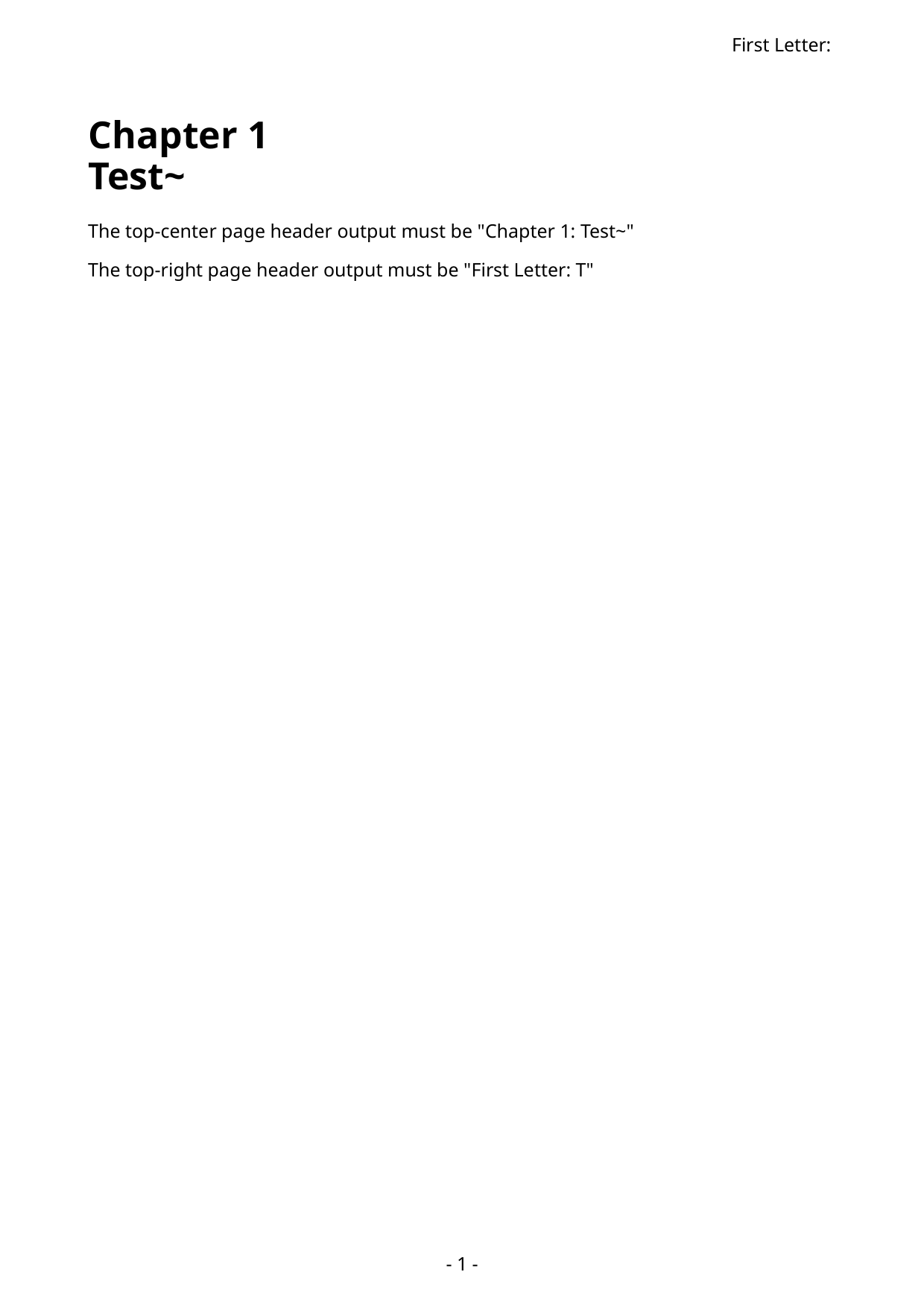

Typeset.sh  UNSUPPORTED

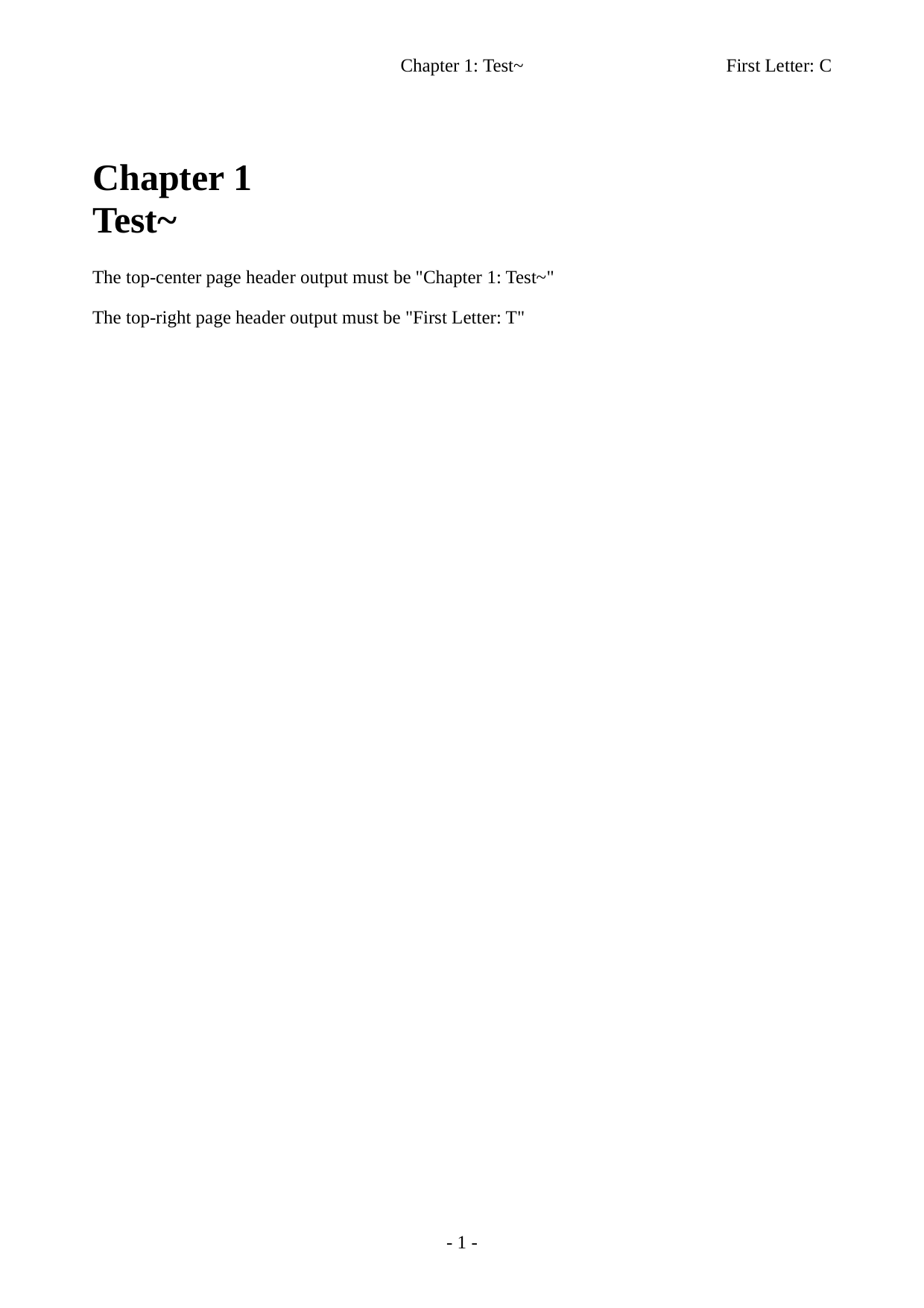

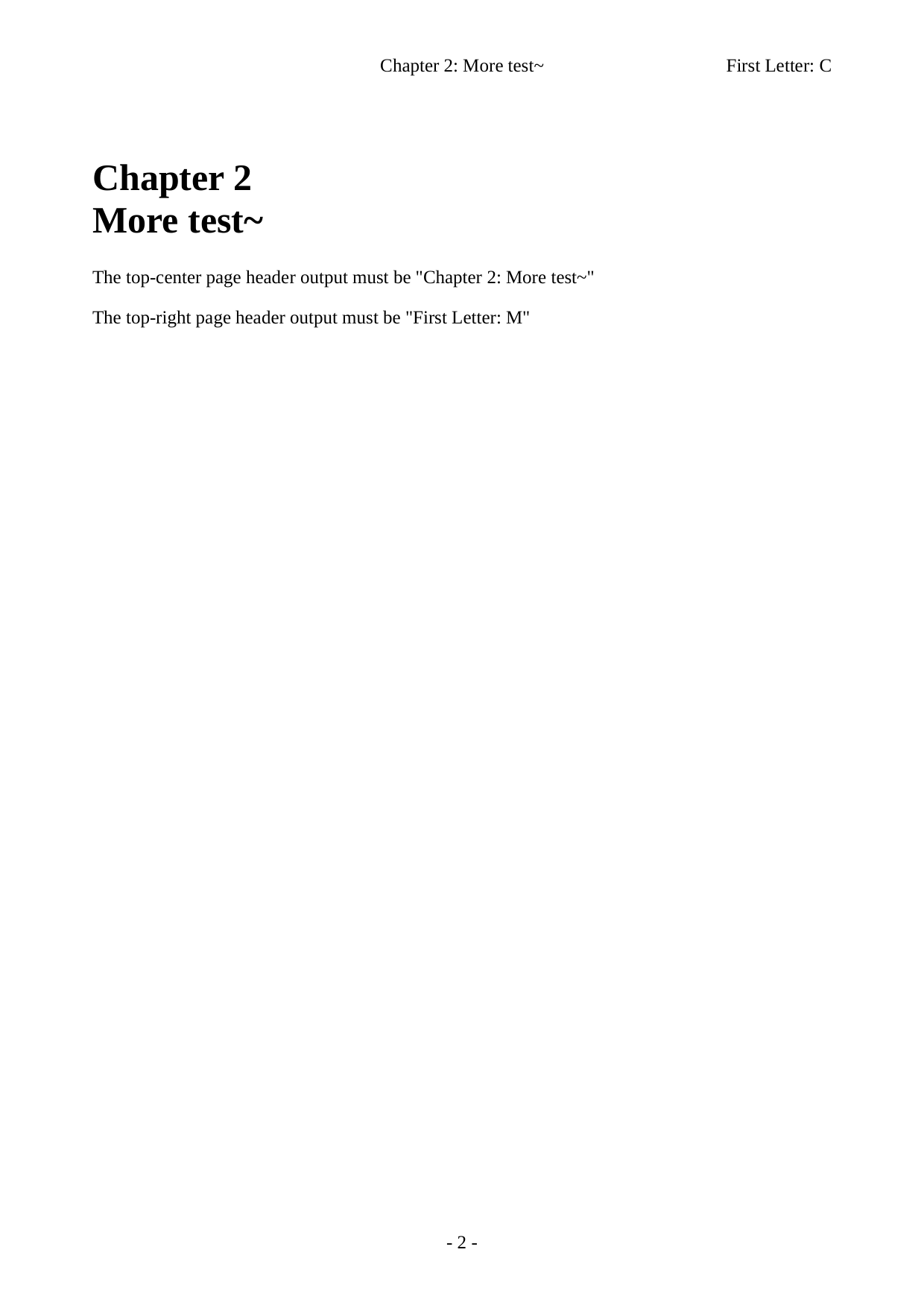

Vivliostyle  OK

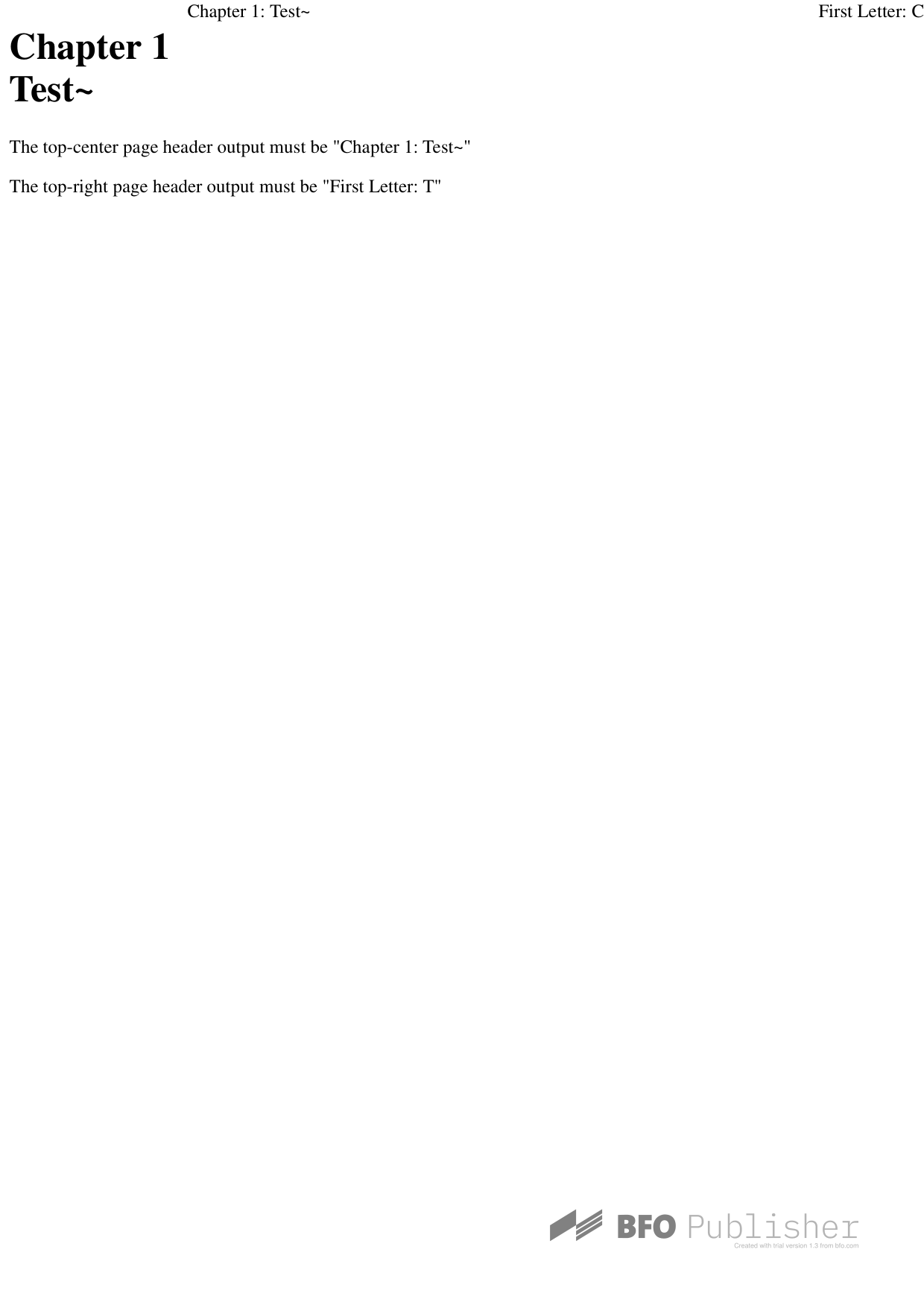

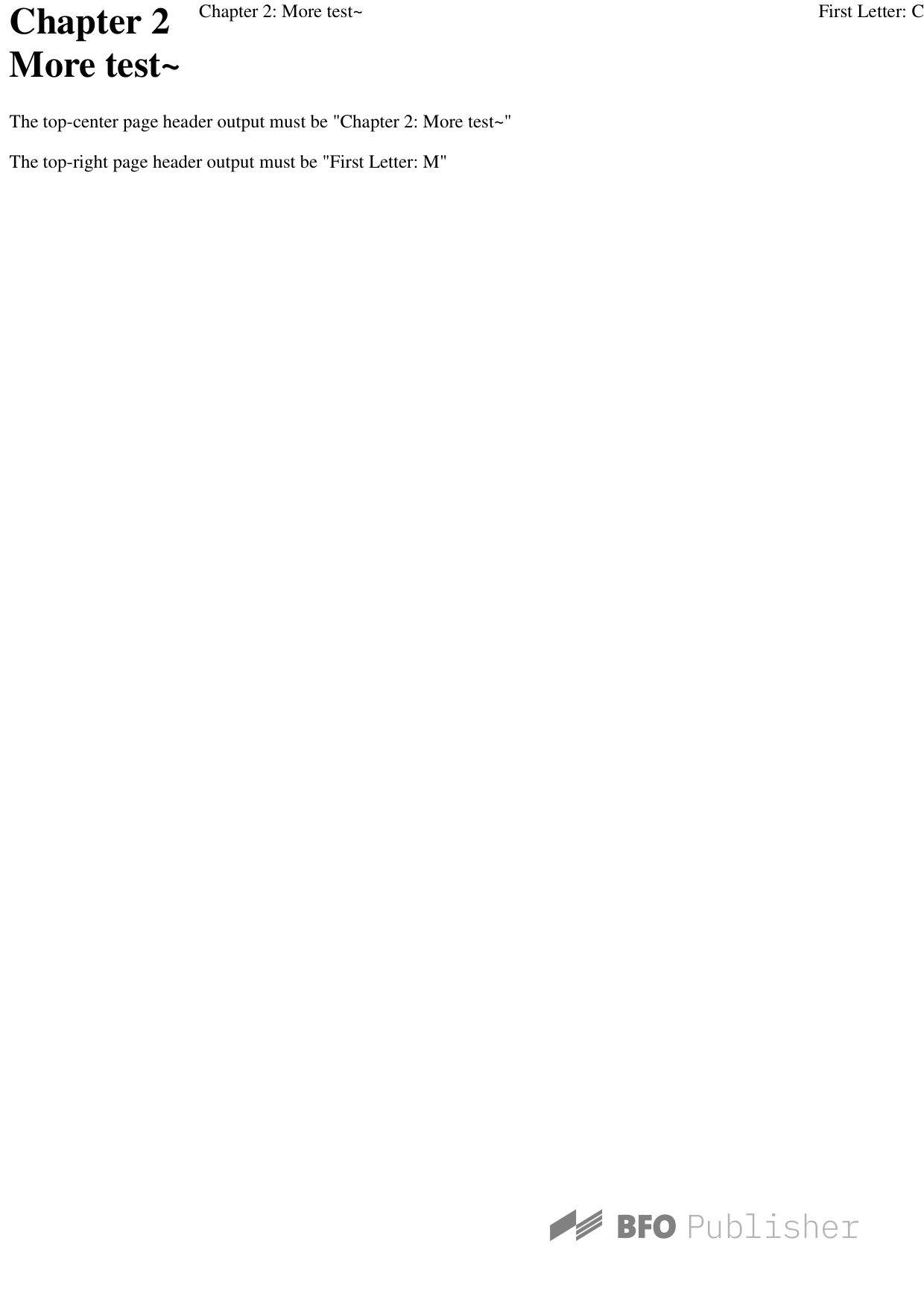

BFO  ERROR
improper behavior
OK OK with issues Error Unsupported

HTML input

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <title>Named strings - string() function</title>
    <link rel="stylesheet" href="styles.css">
  </head>
  <body>
    <h1>Test</h1>
    <p>The top-center page header output must be "Chapter 1: Test~"</p>
    <p>The top-right page header output must be "First Letter: T"</p>
    <h1>More test</h1>
    <p>The top-center page header output must be "Chapter 2: More test~"</p>
    <p>The top-right page header output must be "First Letter: M"</p>
  </body>
</html>

Stylesheet

body {
    counter-reset: chapter;
}

h1 {
    counter-increment: chapter;
    string-set: header content(before) ": " content(text) content(after), FirstLetter content(first-letter);
    break-before: page;;
}

h1::before {
    content: "Chapter " counter(chapter);
    display: block;
}

h1::after {
    content: "~";
}

@page {
    size: A4;

    @top-center {
        content: string(header);
    }
    @top-right {
        content: "First Letter: " string(FirstLetter);
    }
    @bottom-center {
        content: "- " counter(page) " -";
    }
}
