CSS gradients

This example show the usage of CSS gradients

Repository files

PDF files

Converter Status PDF Preview
PDFreactor  OK
PrinceXML  OK
Antennahouse  OK
Weasyprint  OK
PagedJS  OK
Typeset.sh  OK
Vivliostyle  OK
BFO  OK
OK OK with issues Error Unsupported

HTML input

<html>
    <head>
        <link rel="stylesheet" type="text/css" href="styles.css" />
    </head>
    <body>
        <div class="g" id="gradient1"></div>
        <div class="g" id="gradient2"></div>
        <div class="g" id="gradient3"></div>
        <div class="g" id="gradient4"></div>
        <div class="g" id="gradient5"></div>
        <div class="g" id="gradient6"></div>
        <div class="g" id="gradient7"></div>
        <div class="g" id="gradient8"></div>
        <div class="g" id="gradient9"></div>
        <div class="g" id="gradient10"></div>
    </body>
</html>

Stylesheet

@import url("../styles/a4.css");

div.g {
    width: 150mm;
    height: 150mm;
    border: 1px solid blue;
    margin-right: 1em;
    margin-bottom: 1em;
    break-after: page;
}

#gradient1 {
    background: radial-gradient(circle closest-corner at 50% 50%, red, green 20%, yellow 70%, black);
}

#gradient2 {
    background: repeating-linear-gradient(45deg, #3f87a6, #ebf8e1 15%, #f69d3c 20%);
}

#gradient3 {
    background: linear-gradient(to right, black, white);
}

#gradient4 {
    background: linear-gradient(225deg, red, green 20%, yellow 70%, black);
}

#gradient5 {
    background: repeating-radial-gradient(#000000, #ffffff 10px, #000000 20px);
}

#gradient6 {
    background:
        repeating-linear-gradient(
            -45deg,
            transparent 0,
            transparent 25%,
            dodgerblue 0,
            dodgerblue 50%
       ),
       repeating-linear-gradient(
            45deg,
            transparent 0,
            transparent 25%,
            tomato 0,
            tomato 50%
        ),
        repeating-linear-gradient(
            transparent 0,
            transparent 25%,
            gold 0,
            gold 50%
        ), white;
    background-blend-mode: multiply;
    background-size: 100px 100px;
}

#gradient7 {
    background-color:silver;
        background-image:
        radial-gradient(circle at 100% 150%, silver 24%, white 24%, white 28%, silver 28%, silver 36%, white 36%, white 40%, transparent 40%, transparent),
        radial-gradient(circle at 0    150%, silver 24%, white 24%, white 28%, silver 28%, silver 36%, white 36%, white 40%, transparent 40%, transparent),
        radial-gradient(circle at 50%  100%, white 10%, silver 10%, silver 23%, white 23%, white 30%, silver 30%, silver 43%, white 43%, white 50%, silver 50%, silver 63%, white 63%, white 71%, transparent 71%, transparent),
        radial-gradient(circle at 100% 50%, white 5%, silver 5%, silver 15%, white 15%, white 20%, silver 20%, silver 29%, white 29%, white 34%, silver 34%, silver 44%, white 44%, white 49%, transparent 49%, transparent),
        radial-gradient(circle at 0    50%, white 5%, silver 5%, silver 15%, white 15%, white 20%, silver 20%, silver 29%, white 29%, white 34%, silver 34%, silver 44%, white 44%, white 49%, transparent 49%, transparent);
        background-size: 100px 50px;
}



#gradient8 {
    background-color: #000;
    background-image: repeating-linear-gradient(90deg, transparent, transparent 50px,
          rgba(255, 127, 0, 0.25) 50px, rgba(255, 127, 0, 0.25) 56px, transparent 56px, transparent 63px,
          rgba(255, 127, 0, 0.25) 63px, rgba(255, 127, 0, 0.25) 69px, transparent 69px, transparent 116px,
          rgba(255, 206, 0, 0.25) 116px, rgba(255, 206, 0, 0.25) 166px),
    repeating-linear-gradient(0deg, transparent, transparent 50px, rgba(255, 127, 0, 0.25) 50px,
          rgba(255, 127, 0, 0.25) 56px, transparent 56px, transparent 63px, rgba(255, 127, 0, 0.25) 63px,
          rgba(255, 127, 0, 0.25) 69px, transparent 69px, transparent 116px, rgba(255, 206, 0, 0.25) 116px,
          rgba(255, 206, 0, 0.25) 166px),
    repeating-linear-gradient(-45deg, transparent, transparent 5px, rgba(143, 77, 63, 0.25) 5px,
          rgba(143, 77, 63, 0.25) 10px),
    repeating-linear-gradient(45deg, transparent, transparent 5px, rgba(143, 77, 63, 0.25) 5px,
          rgba(143, 77, 63, 0.25) 10px);
}

#gradient9 {
    background:
    radial-gradient(rgba(255,255,255,0) 0, rgba(255,255,255,.15) 30%, rgba(255,255,255,.3) 32%, rgba(255,255,255,0) 33%) 0 0,
    radial-gradient(rgba(255,255,255,0) 0, rgba(255,255,255,.1) 11%, rgba(255,255,255,.3) 13%, rgba(255,255,255,0) 14%) 0 0,
    radial-gradient(rgba(255,255,255,0) 0, rgba(255,255,255,.2) 17%, rgba(255,255,255,.43) 19%, rgba(255,255,255,0) 20%) 0 110px,
    radial-gradient(rgba(255,255,255,0) 0, rgba(255,255,255,.2) 11%, rgba(255,255,255,.4) 13%, rgba(255,255,255,0) 14%) -130px -170px,
    radial-gradient(rgba(255,255,255,0) 0, rgba(255,255,255,.2) 11%, rgba(255,255,255,.4) 13%, rgba(255,255,255,0) 14%) 130px 370px,
    radial-gradient(rgba(255,255,255,0) 0, rgba(255,255,255,.1) 11%, rgba(255,255,255,.2) 13%, rgba(255,255,255,0) 14%) 0 0,
    linear-gradient(45deg, #343702 0%, #184500 20%, #187546 30%, #006782 40%, #0b1284 50%, #760ea1 60%, #83096e 70%, #840b2a 80%, #b13e12 90%, #e27412 100%);
    background-size: 470px 470px, 970px 970px, 410px 410px, 610px 610px, 530px 530px, 730px 730px, 100% 100%;
    background-color: #840b2a;
}

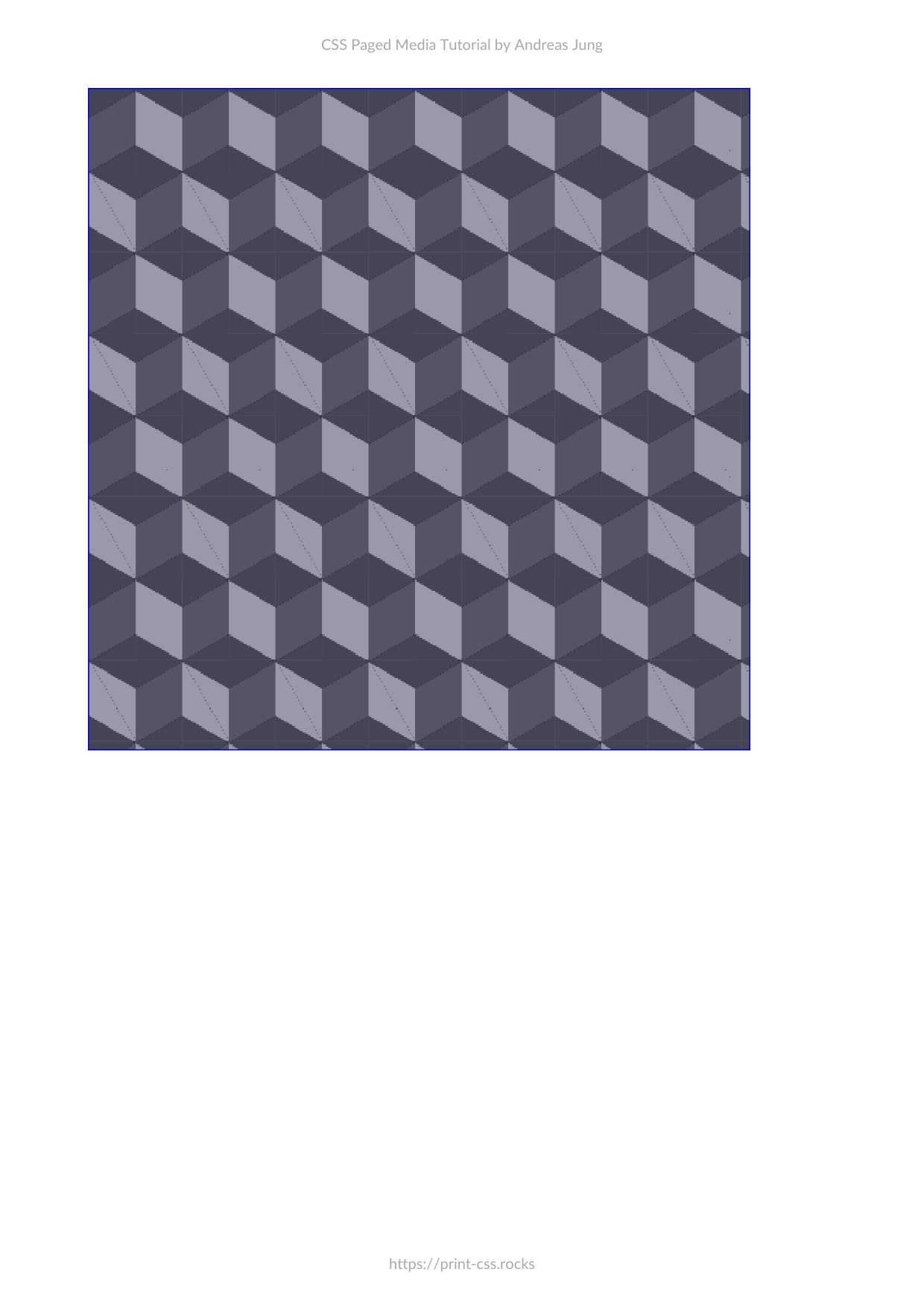

#gradient10 {
    background-color:#556;
    background-image: linear-gradient(30deg, #445 12%, transparent 12.5%, transparent 87%, #445 87.5%, #445),
    linear-gradient(150deg, #445 12%, transparent 12.5%, transparent 87%, #445 87.5%, #445),
    linear-gradient(30deg, #445 12%, transparent 12.5%, transparent 87%, #445 87.5%, #445),
    linear-gradient(150deg, #445 12%, transparent 12.5%, transparent 87%, #445 87.5%, #445),
    linear-gradient(60deg, #99a 25%, transparent 25.5%, transparent 75%, #99a 75%, #99a),
    linear-gradient(60deg, #99a 25%, transparent 25.5%, transparent 75%, #99a 75%, #99a);
    background-size:80px 140px;
    background-position: 0 0, 0 0, 40px 70px, 40px 70px, 0 0, 40px 70px;
}
