Complex CSS

A complex CSS example with CSS positioning, fonts and some typography. Expected output: http://v1.jontangerine.com/silo/css/complex-type-fix/

Repository files

PDF files

Converter Status PDF Preview

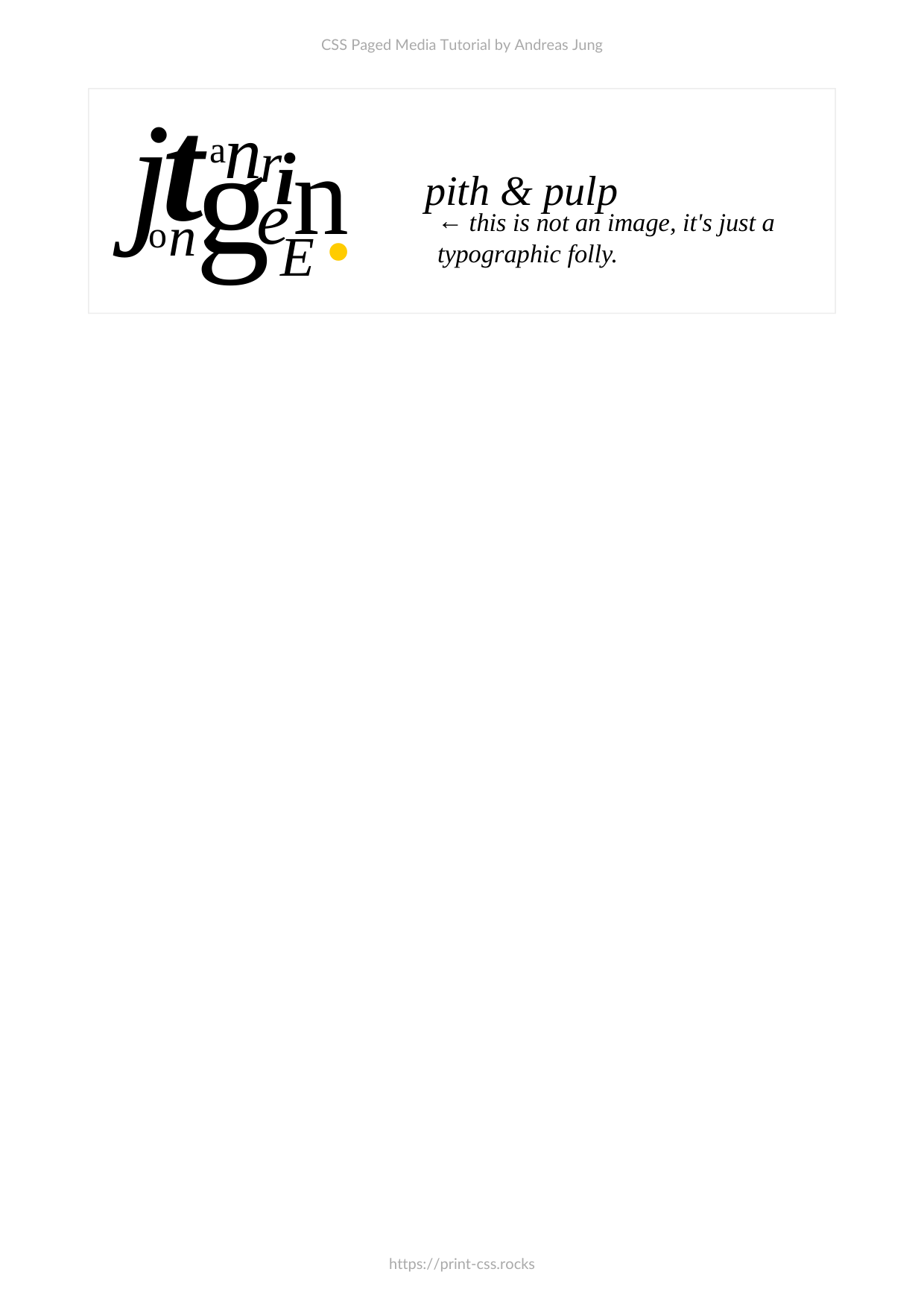

PDFreactor  OK
PrinceXML  OK
Antennahouse  (OK)
"←" missing
Weasyprint  OK
PagedJS  OK
Typeset.sh  ERROR
Vivliostyle  OK

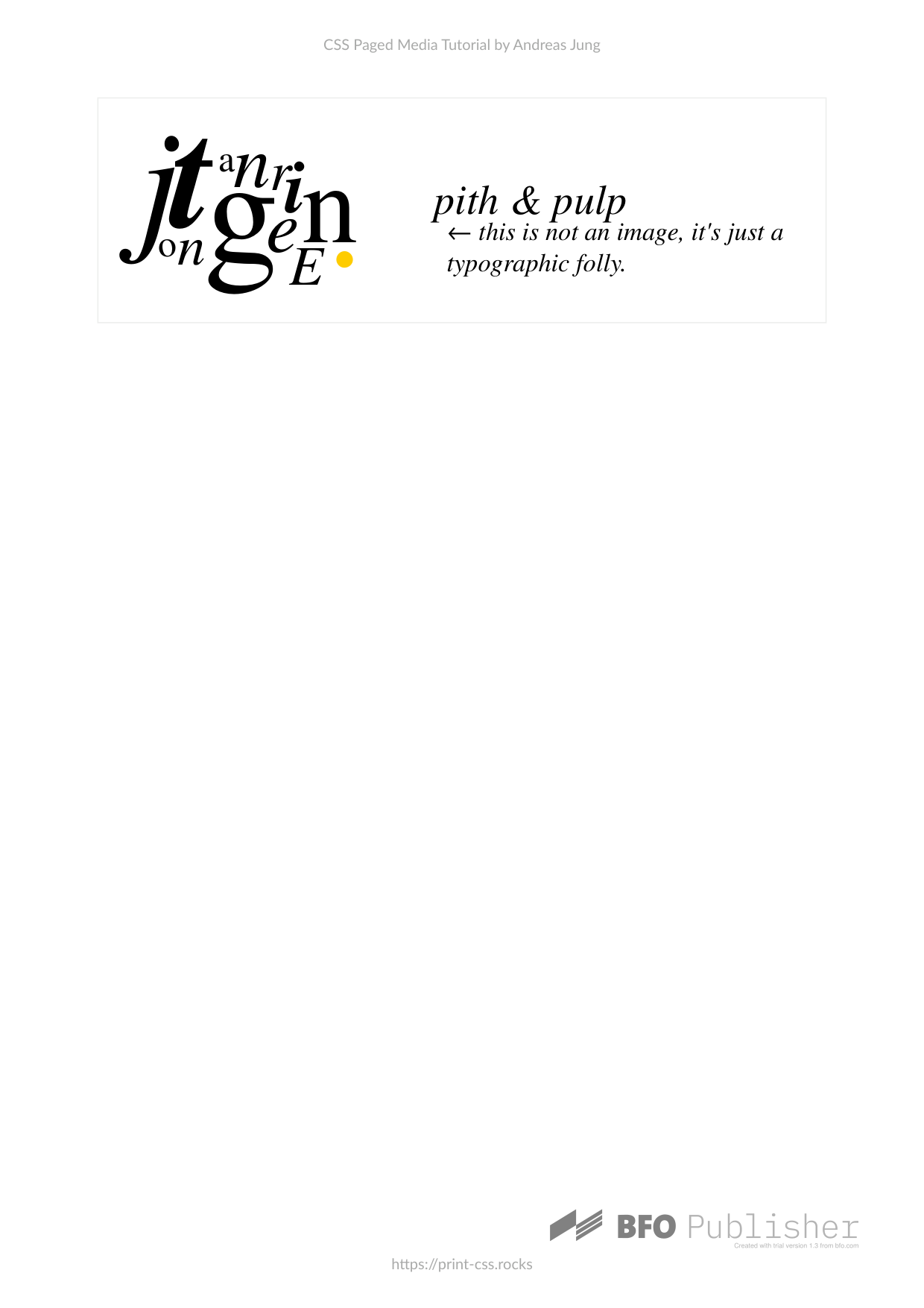

BFO  OK
OK OK with issues Error Unsupported

HTML input

<html>
    <head>
        <link rel="stylesheet" type="text/css" href="styles.css" />
    </head>
    <body>


        <div id="type-wrap">
            <h1 id="type"><em>J<span>o<span>n</span></span></em> <i>T<span>a<span>n</span></span></i><strong>g<span>e<span>r<span>i<span>n<span>e<span>.</span></span></span></span></span></span></strong></h1>
            <p><em>Pith &#38; pulp</em> <strong>&#8592; This is not an image, it's just a typographic folly.</strong></p>
        </div>

    </body>
</html>

Stylesheet

@import url("../styles/a4.css");

#type-wrap,
#type,
#type em,
#type strong,
#type i,
#type span{
    border:1px solid transparent;
    background:transparent;
}
#type em,
#type strong,
#type i,
#type span{
    padding:0.063em 0.25em; /* 8px y 32px x @144px f-size */
    position:absolute;
}

#type-wrap{
    height:12em;
    text-align:left;
    display:block;
    clear:both;
    border:1px solid #eee;
}
#type{
    font-size:8em;
    line-height:1em;
    font-weight:300;
    font-family:'times new roman',serif;
    letter-spacing:0;
    float:none;
    color:#000;
    margin:0;
    padding:0;
    position:relative;
}

/* Jon */

#type em{
    text-transform:lowercase;
    left:0;
    top:0;
    /* over-ride defaults */
    font-size:1em;
    line-height:1em;
    font-style:italic;
    margin:0;
    padding:0.063em 0.25em; /* 8px y 32px x @144px f-size */
}
#type em span{
    font-size:0.25em; /* 32px */
    font-style:normal;
    left:1.25em; /* 40px */
    top:1.75em; /* 56px */
}
#type em span span{
    font-size:1.5em;  /* 48px */
    font-style:italic;
    left:0.25em; /* 10px */
    top:0; /* 21px */
}

/* Tan */

#type i{
    font-size:1em; /* 128px */
    font-style:italic;
    font-weight:900;
    text-transform:lowercase;
    left:0.219em; /* 28px */
    top:-0.039em; /* 12px */
}
#type i span{
    font-size:0.25em; /* 32px */
    font-style:normal;
    font-weight:300;
    left:2em; /* 64px */
    top:-0.375em; /* 12px */
}
#type i span span{
    font-size:2em; /* 48px */
    font-style:italic;
    left:0.063em; /* 3px */
    top:0;
}

/* gerine */

#type strong{
    font-size:1em; /* 128px */
    font-weight:300;
    left:0.444em; /* 88px */
    top:0.188em; /* 24px */
}
#type strong span{
    font-size:0.5em; /* 64px */
    font-style:italic;
    left:1.063em; /* 36px */
    top:0.25em; /* 16px */
}
#type strong span span{
    font-size:0.75em; /* 48px */
    left:0.125em; /* 6px */
    top:-1em; /* 48px */
}
#type strong span span span{
    font-size:1.333em; /* 64px */
    font-weight:900;
    text-transform:lowercase;
    left:0.125em; /* 8px */
    top:0.189em; /* 12px */
}
#type strong span span span span{
    font-size:1.5em; /* 96px */
    font-weight:300;
    font-style:normal;
    left:0.063em; /* 6px */
    top:0.125em; /* 12px */
}
#type strong span span span span span{
    font-size:0.5em; /* 48px */
    text-transform:uppercase;
    font-style:italic;
    left:0;
    top:1.125em; /* 54px */
}
#type strong span span span span span span{
    font-size:2.667em;
    color:#fc0;
    left:0.125em; /* 16px */
    top:-0.375em; /* 48px */
}

/* note */

#type-wrap p{
    font-size:2.25em;
    line-height:0.75em;
    font-style:italic;
    text-transform:lowercase;
    color:#000;
    font-family: georgia,serif;
    margin:2em 0 0 8em;
}
#type-wrap p strong{
    font-size:0.611em;
    font-weight:300;
    display:block;
    padding-left:0.5em;
}
